Inheritance hierarchy#

The main components of the MPC-RL framework are the agents, which are responsible for interacting with the environment and, in case they are able to do so, learning the optimal policy from these interactions.

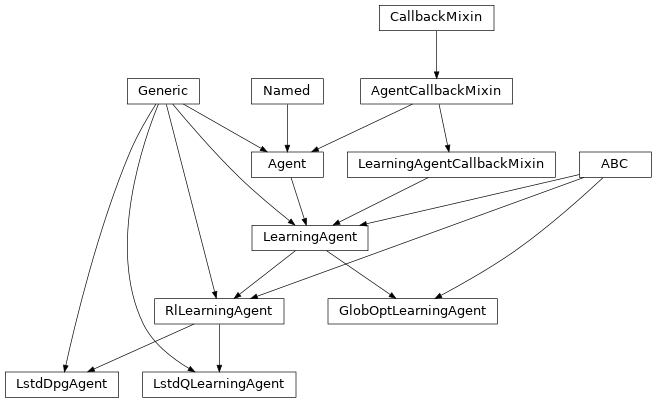

But before jumping into the details of the different agents, it is important to understand the hierarchy of the different classes that are used to implement the agents and their relationships. The following diagram shows the inheritance scheme of the different agents.

Inheritance diagram of Agent, LearningAgent, GlobOptLearningAgent, RlLearningAgent, LstdDpgAgent, LstdQLearningAgent

Callbacks#

While some of the classes in the diagram are outside the scope of this documentation, let us notice that the Agent and the LearningAgent classes inherit from the mixins core.callbacks.AgentCallbackMixin and core.callbacks.LearningAgentCallbackMixin, respectively. These base classes are fundamental to the implementation of the agents as they provide the backbone for other functionalities, such as updates and schedulers, to be hooked into each agent and be called with a specific frequency, e.g., at the end of every episode or after 100 time steps. Of course, this is internally vital for learning agents, as they need to update their parametrization with a given frequency. Nonetheless, also end users can benefit from these callbacks: they allow to implement logic that needs to be executed when specific events occur, e.g., updating disturbance profiles, changing references, etc.. This topic is discussed further in User guide’s Callbacks and in Module reference’s Callbacks.

Agents#

Now, for the agents! As seen in the diagram above, the simplest agent class is Agent. This class implements a basic agent that can interact with an environment, but not learn from it. From there, the abstract classes LearningAgent and RlLearningAgent are derived, which introduce learning capabilities to the agents. Parallel to latter, which is oriented towards gradient-based RL solutions, the abstract GlobOptLearningAgent defines the layout for agents that leverage Global Optimzation (i.e., gradient-free) strategies rather than gradient-based ones. Finally, the concrete classes LstdDpgAgent and LstdQLearningAgent implement the DPG and Q-learning algorithms, respectively, to tune the MPC controller’s parameters. More details about all these agents can be found in the next sections of the User guide.
